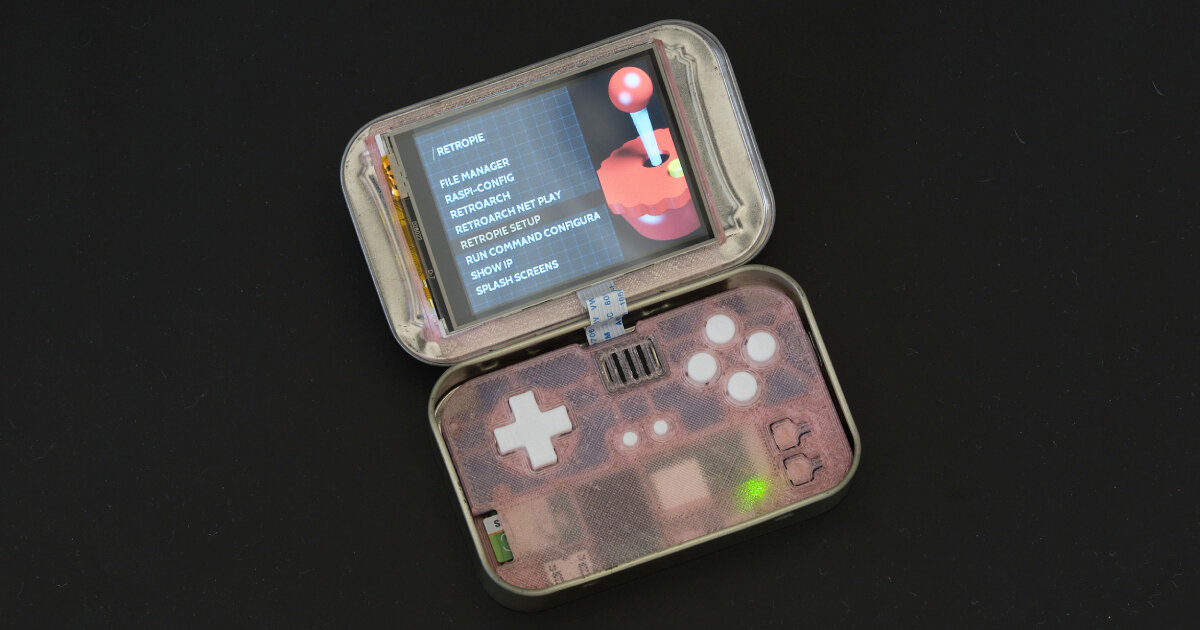

Raspberry Pi Inside Video games console Recyclate Altoids Tin
Alley Cat Engineering creates a behavior Raspberry pi Transportable retro video games console which inserts inside a recycled Altoids Mint Tin. Made by Jackw01 and Soaporsalad, the gadget known as PI tin is open-source, constructed round Raspberry Pi 2 W and with a 2.Eight-inch TFT display, in order that it may well match inside a Altoids tin. The gadget accepts the emulation for SNES, GBA, PS1, Genesis/Megadrive and some N64 video games. The gamepad makes use of ALPS tactile switches and an elastomer membrane, the identical elements present in Recreation Boy Advance SP and DSI.
Features a software program for beginning the system or closing it with a single press. The Raspberry PI recreation console can be utilized throughout loading and is appropriate with all USB-C cables and prices. The battery provides as much as 5 hours of play utilizing a 2000 mAh battery. Useful customers can construct their very own pi tin with a 3D printed Clamshell housing or inside a Altoids tin. Each require a raspberry pi zero 2 W, two personalised PCBs, 3D printed elements and extra elements. PCBs may be low-cost, however require superior soldering methods.
All pictures type of Jackw01 and Soaporsalad from Alley Cat Engineering
Constructing retro recreation gadget
The cat of alley Engineering staff Says that the choice of tin Alids is extra advanced, requires further instruments, has a diminished battery capability and has restricted ergonomics. Then again, the Raspberry Pi recreation console in 3D printed housing is simpler to assemble. For customers who wish to attempt to construct the Altoids tin possibility, they introduce three neodimal magnets behind the tin and safe them with glue. Then place the primary PCB on the entrance panel and join the battery, retaining a wire loop.
Set up 4 again buttons within the housing, align the elements and repair them with six screws. After that, I exploit tape to restore the froth battery and tape to middle the PCB. The following is to drill holes in tin for ports and buttons, then connect the lid to cease and a magnet to the lid clip. The following safety of the show PCB and its set up within the tin cowl follows. For the final half, join the show, enter the PCB meeting and fasten the lid clip. Once more these directions are Open-Supplywhich incorporates an digital development information, in addition to the configuration and testing of the software program. The staff additionally loaded the directions for constructing the Raspberry Pi recreation console within the 3D printed clamshell case.
4 again buttons within the housing
The gadget is provided with a 2.Eight -inch TFT display
Gamepad makes use of ALPS tactile switches and an elastomer membrane
Customers can play the gadget throughout loading and is appropriate with all USB-C cables
Elements of the personalised gadget
