A staff of scholars of the College of Purdue just lately set a brand new Guinness world file with their customized robotic, which has solved a Rubik dice in simply zero.103 seconds. This was a few third of the time, the earlier registration bot was wanted. However the brand new file was not obtained by merely constructing a robotic that strikes quicker. College students used a mix of excessive -speed room programs, however with low resistance, a personalised dice for improved resistance and a particular standard decision approach amongst human speeds.
The Rubik’s Robik Robotic Robotic race began in 2014, when a robotic known as Cubestor three constructed with Lego Mindstorms and a Samsung Galaxy S4 solved the long-lasting puzzle in three,253 seconds or quicker than any man or robotic on the time. (The present world file for a decision of a Rubik dice belongs to Xuanyi Geng, who did it in simply three.05 seconds.) Throughout a decade, the engineers managed to cut back the file to solely a whole lot of milliseconds.
In Might final yr, engineers from Mitsubishi Electrical from Japan claimed the world file with a robotic who solved a dice in zero.305 seconds. The file stayed virtually a yr earlier than the staff from the Elmore Household Faculty of Purdue, electrical and laptop engineering – Junpei Ota, Aden Hurd, Matthew Patrohay and Alex Berta – had shattered it. Their robotic grew to become referred to as Purdubik’s dice. Bringing the robotic file for lower than half a second required to take away LEGO and, as an alternative, utilizing optimized parts reminiscent of industrial engines. Nevertheless, the discount to solely zero.103 seconds compelled the Purdue staff to seek out extra new methods to giggle.
“Each robotic that the earlier world file holders made has centered on a brand new factor,” says Patrohay Verta. When the scholars MIT grade recorded the file in 2018, they opted for industrial that exceeded what earlier file holders used. Mitsubishi Electrical selected electrical motors that have been extra appropriate for the particular activity of spining on all sides of the dice, as an alternative of solely that moved quicker.
Nevertheless, the very first thing that Purdue college students improved was truly the pace that their robotic might view the scrambled dice. Opponents of human pace cubes are allowed to review Rubik’s dice earlier than the beginning of their stopwatch, however the robotic recording consists of the time wanted to find out the situation of all coloured squares. The scholars used a pair of imaginative and prescient rooms of the excessive -speed machine from Flir, with a decision of solely 720×540 pixels, directed to the other corners of the dice. Every room can see three components concurrently throughout exposures that lasted solely 10 microseconds.
Though it could appear immediately, it takes time for a digicam to course of the info from a sensor and switch them right into a digital picture. The Purdubik dice makes use of a personalised photos detection system that jumps utterly processing. It additionally focuses solely on a really small space of what the sensor of every room sees – a area lower with solely 128×124 pixels – to cut back the quantity of knowledge which can be moved.
The gross knowledge from the sensors are despatched on to a high-speed coloration detection system utilizing RGB measurements in pattern areas and smaller on every sq. to find out their coloration quicker than different approaches and AI.
“Typically it’s a little much less dependable,” admits Patrohay, “however even whether it is 90 % constant, it’s adequate, so long as it’s quick. We actually need this pace.”
Although numerous on Purdue’s robotic is made to order, the staff selected to go together with the present software program when he got here to comprehend the quickest strategy to remedy a caught dice. They used the France Rob-Twophase, which is a cubic decision algorithm that takes under consideration the distinctive robots capabilities, reminiscent of to have the ability to rotate two components of a simultaneous dice.
The staff additionally took benefit of the Rubik cubic decision approach, known as Nook Reducing the place you can begin turning part of the dice earlier than you end turning one other half that’s perpendicular to it. The benefit of this system is that you don’t look forward to one facet to utterly end its rotation earlier than beginning one other. For a short while, there’s an overlap between the actions of the 2 events that may result in a major time period saved when watching a world file.
The problem with slicing the nook is that for those who use an excessive amount of power (reminiscent of a robotic is succesful) and you can not cease your issues completely, you’ll be able to bodily break and even utterly destroy the dice of a rubik. Along with enhancing the second of robotic actions and the acceleration of its engines, the scholars needed to customise the dice themselves.
Guinness World Data respects the rules of the World Dice Affiliation, which has a protracted checklist of laws that have to be adopted earlier than a recording. It permits the opponents to switch their dice, so long as it turns and returns as an ordinary dice of Rubik and has 9 coloured squares on every of its six components, with every half a special coloration. Supplies aside from the plastic can be utilized, however the coloration components will need to have the identical texture.
As a way to enhance their sturdiness, the Purdue staff has modernized the interior construction of their cubes with a personalised 3D printing model, manufactured from stronger Nylon SLS. The WCA additionally permits the usage of lubricants to assist to make cubes to rotate extra freely, however right here it’s used for a special motive.
“The dice we use for registration is extremely tense, like virtually hilarious,” says Patrohay. “The one I modified may be very tough to rework. It’s not unimaginable, however you can not flip it along with your fingers. You could actually give your wrist.” If you remedy the dice at excessive speeds, the lubricant helps to easy its actions, whereas the elevated pressure reduces the overturn and improves management, so that point saving tips, reminiscent of slicing the nook, can be utilized.

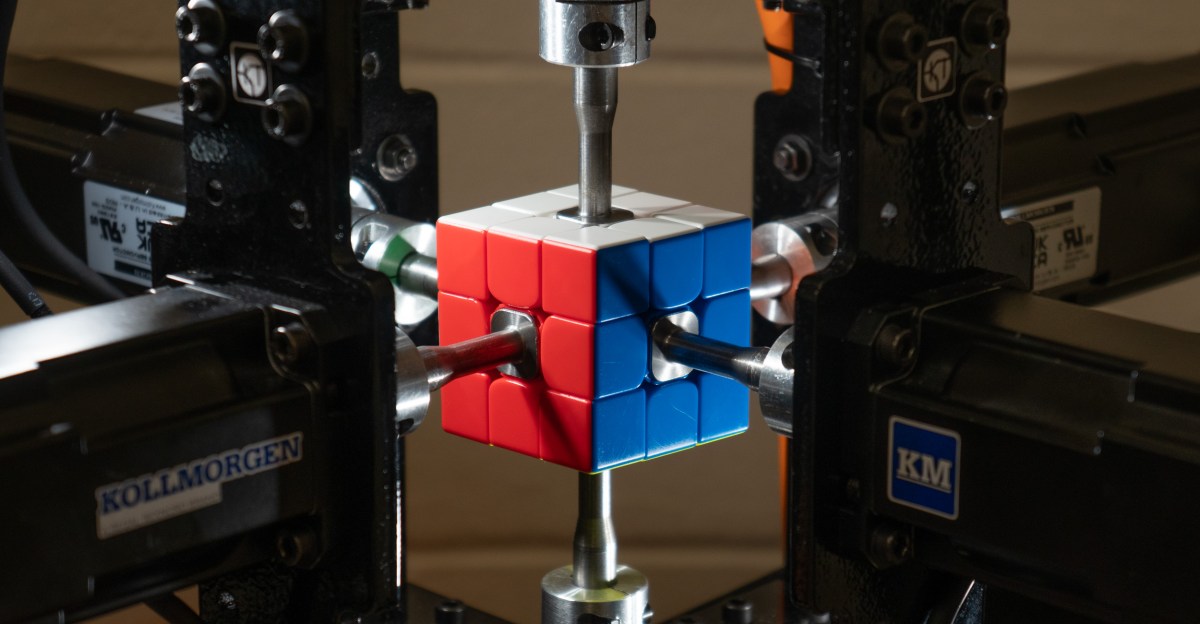

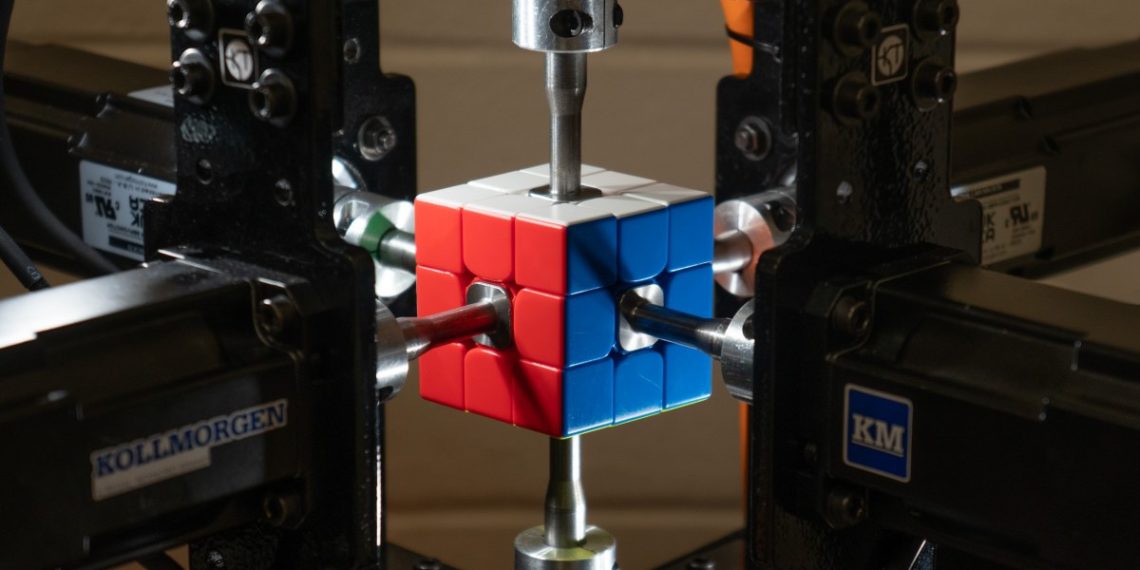

Sooner servo motors assist scale back the decision occasions, however it isn’t as easy to maximise their pace and hope for the very best. The Purdubik dice makes use of six engines hooked up to metallic bushes which can be fastened within the heart of every a part of the dice. After testing a number of totally different approaches, the staff settled on a trapezoidal motion profile, the place the service accelerates with speeds as much as 12,000,000 levels/S2, however decelerate a lot slower, nearer to three,000,000 levels/S2, in order that the robotic can place extra precisely every half, because it stops.
May Purdubik’s dice file the file once more? Patrohay believes it’s doable, however it will want a stronger dice manufactured from one thing aside from plastic. “For those who have been to make a full dice of Rubik, in a type of carbon fiber composite, then I might think about that you could survive at increased speeds and you may merely survive at increased speeds, it would will let you scale back the time down.”
